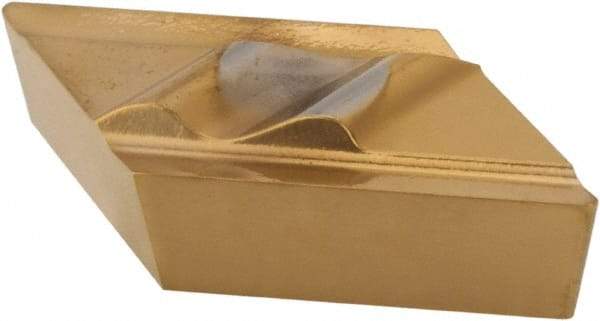

Hertel - IPL131, HC335 Grade Carbide Profiling Insert - TiN Finish, 8° Relief Angle, Parallelogram, 3/16" Thick, 0.015" Corner Radius
Item #: 44687184
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | IPL |
| Insert Size | 131 |
| Manufacturer's Grade | HC335 |
| Width (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1870 |
| Insert Height (Decimal Inch) | 1.0000 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Relief Angle | 8 |
| Coating | TiN |
| Length (Decimal Inch) | 0.5000 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Insert Hand | Left Hand |
| Series | HertelNotch |
| Shape | Parallelogram |
