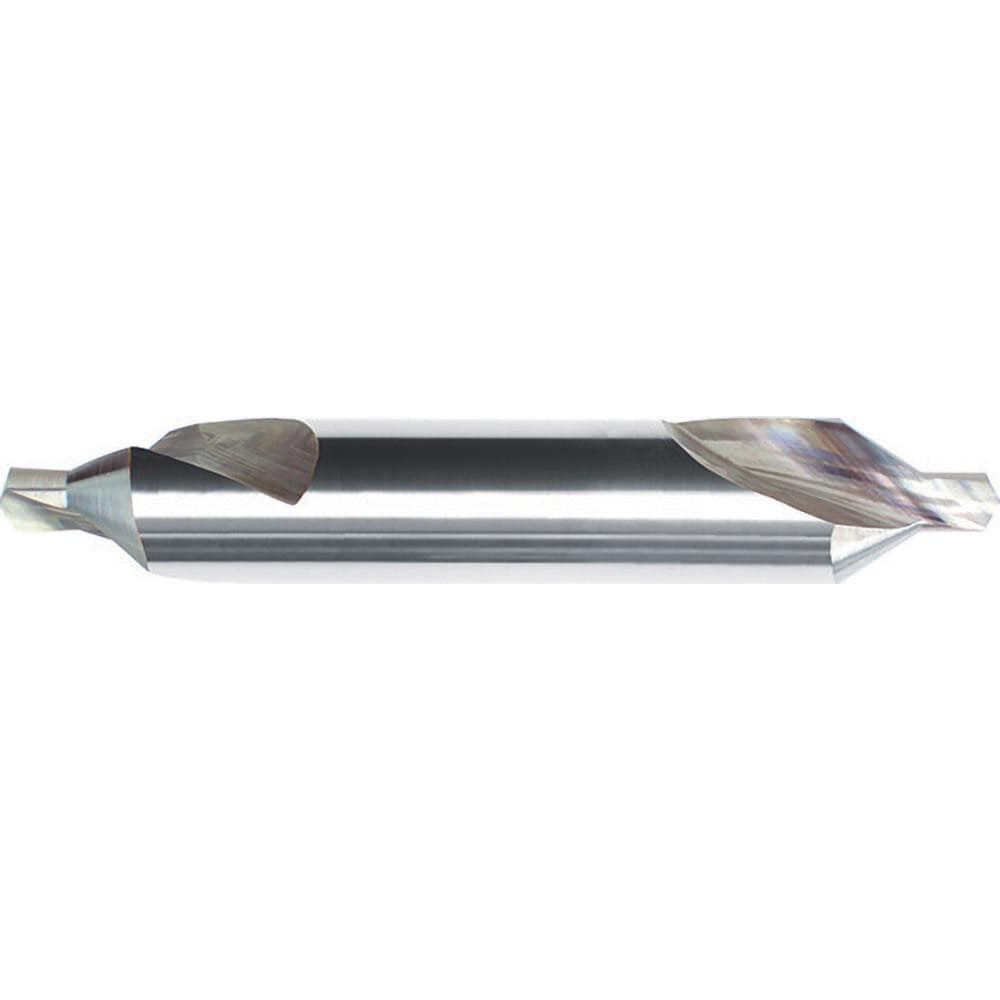

Combo Drill & Countersink: #6, 1/2" Body Dia, Solid Carbide
Item #: 09138561
Brand: Internal Tool
Model #: 71-1035
Product Specifications
| Trade Size | #6 |
| Body Diameter (Decimal Inch) | 0.5000 |
| Body Diameter (Inch) | 1/2 |
| Coating/Finish | Uncoated |
| Tool Material | Solid Carbide |
| Drill Point Diameter (Decimal Inch) | 0.2180 |
| Drill Point Diameter (Inch) | 7/32 |
| Drill Point Length (Inch) | 7/32 |
| Drill Point Length (Decimal Inch) | 0.2180 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Cutting Direction | Right Hand |
| Series | 71 |
| Cutting Edge Style | Plain |
| Included Angle Degree | 60 |
| Insertable Cutter Head | No |
| Tapered | No |
| Tool Application | Drilling; Centering |
| Tool Performance | General Purpose |
| End Type | Double Ended |
| Aircraft Style | No |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Long Length Tool | No |
| UNSPSC Code | 23241603 |
