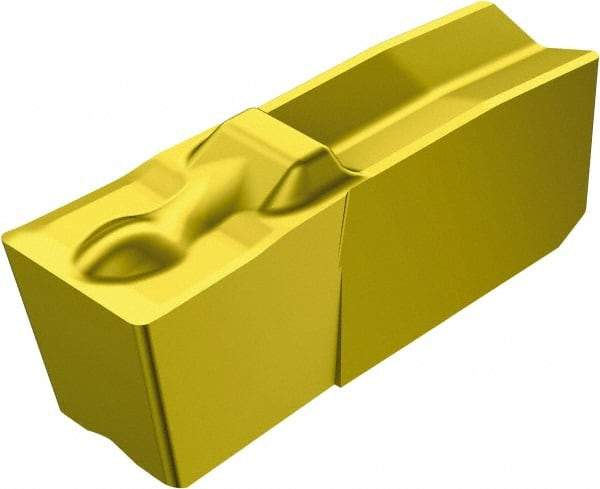

Sandvik Coromant - 30N151.3 4G Grade 235, 3mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, TiCN/TiN Finish
Item #: 44370294
Brand: Sandvik Coromant
Model #: 5738005
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 30 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.28 |
| Cutting Height (Decimal Inch) | 0.2081 |
| Relief Angle | 11 |
| Insert Seat Size | 30 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0059 |
| Maximum Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | CVD |
| Overall Length (mm) | 5.25 |
| Overall Length (Decimal Inch) | 0.2067 |
| Series | T-Max Q-Cut |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N151.3-300-30-4G 235 |
| Manufacturers Catalog Number | N151.3-300-30-4G 235 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Insert Thickness (Decimal Inch) | 0.2082 |
