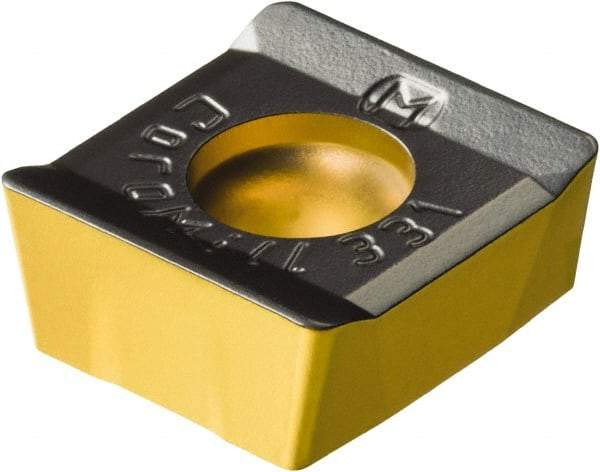

Sandvik Coromant - N331.1115008 KM Grade 3220 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.95mm Thick, 0.8mm Corner Radius
Item #: 43954551
Brand: Sandvik Coromant
Model #: 5737964
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1 |
| Insert Size | 115008 |
| Material | Carbide |
| Manufacturer's Grade | 3220 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 11.50 |
| Length (mm) | 10.70 |
| Thickness (mm) | 4.95 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 10.70 |
| Manufacturers Catalog Number | N331.1A-11 50 08E-KM3220 |
