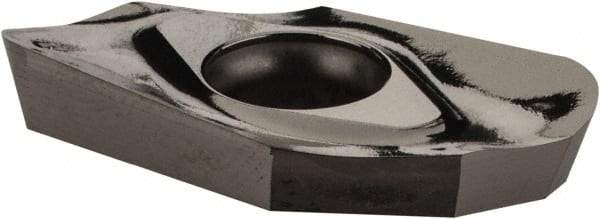

Iscar - HM90 APCR160532 P Grade IC28 Carbide Milling Insert - Uncoated, 0.1776" Thick, 3.2mm Corner Radius
Item #: 43949684
Brand: Iscar
Model #: 5603290
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APCR |
| Insert Size | 160532 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4941 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.1776 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| ISO Number | HM90 APCR 160532R-P |
