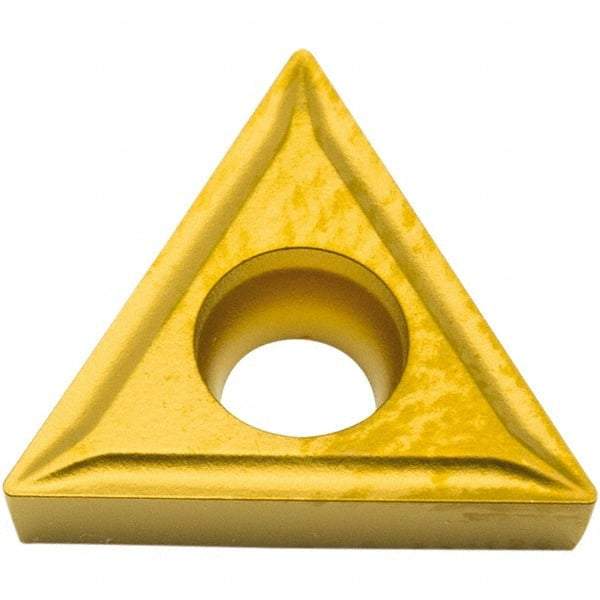

Parlec - TCMT061600 Polycrystalline Diamond (PCD) Boring Insert - Uncoated, 60° Triangle, 7° Relief Angle, 0.156" Inscr Circle, 0.078" Thick, 0.016" Corner Radius
Item #: 43909449
Brand: Parlec
Model #: T061600PCD
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Material | Polycrystalline Diamond (PCD) |
| Insert Style | TCMT |
| Insert Size | 061600 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Decimal Inch) | 0.0780 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0870 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
