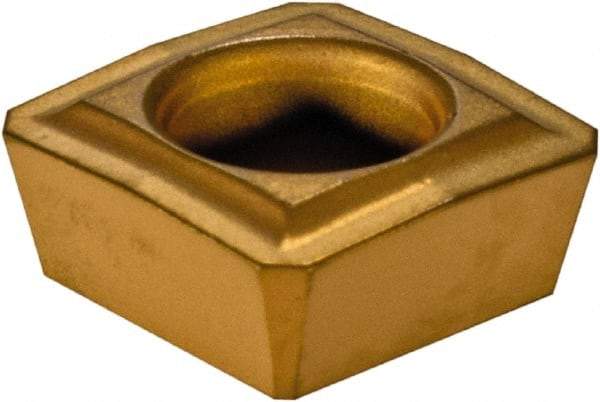

Walter - P2841 Grade WTP35 Carbide Indexable Drill Insert - TiCN/TiN Finish, Square, 1/4" Inscribed Circle
Item #: 43710300
Brand: Walter
Model #: 5023733
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | P284 |
| Insert Size | 1 |
| Material | Carbide |
| Material Grade | P35/M35/S35 |
| Manufacturer's Grade | WTP35 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.39 |
| Thickness (Decimal Inch) | 0.0940 |
| Shape | Square |
| Coating | TiCN/TiN |
| Coating Process | PVD |
