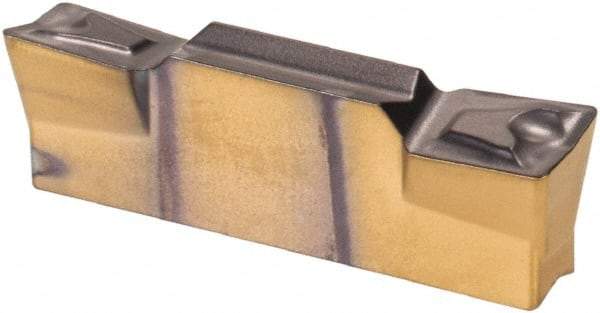

Iscar - 4004HFPR Grade IC808, 4mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, TiN/TiAlN Finish
Item #: 43696020
Brand: Iscar
Model #: 6200306
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HFPR |
| Insert Size | 4004 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heliface |
| ISO Number | HFPR 4004 |
| Manufacturers Catalog Number | HFPR 4004 |
