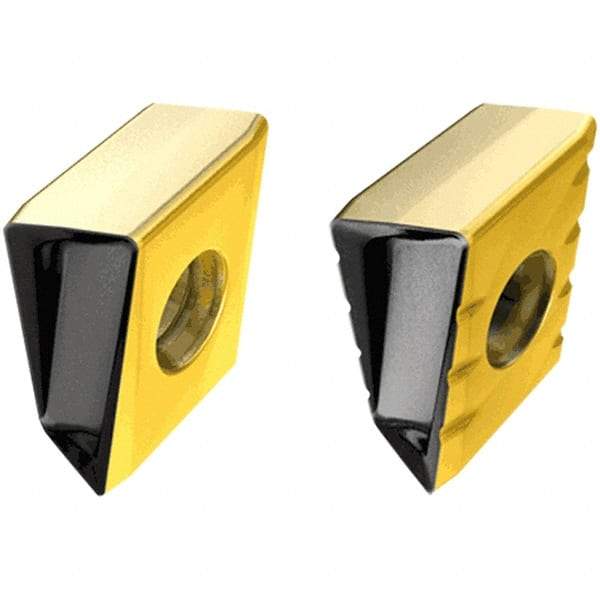

Iscar - HM90 APCT100308 HP Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.139" Thick, 0.8mm Corner Radius
Item #: 43292028
Brand: Iscar
Model #: 5606635
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APCT |
| Insert Size | 100308 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.2677 |
| Length (Decimal Inch) | 0.4512 |
| Thickness (Decimal Inch) | 0.1390 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Rake Angle | 24 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | HP |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| ISO Number | HM90 APCT 100308-HP |
