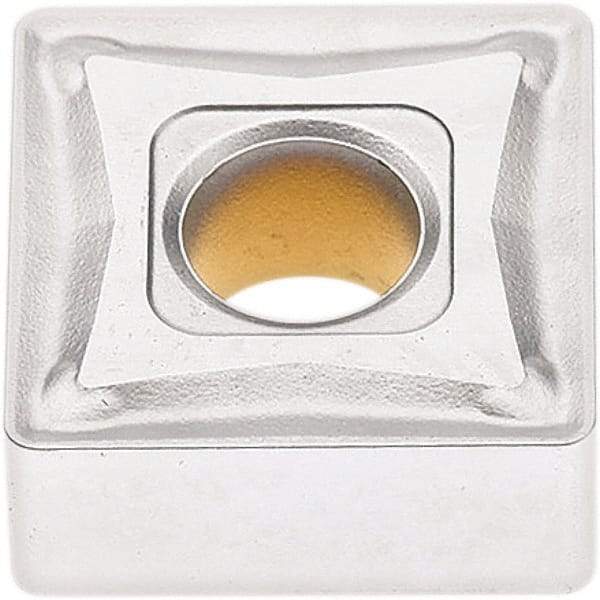

Seco - SNMG431 M3 Grade TP2501 Carbide Turning Insert - Al2O3 Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 43015890
Brand: Seco
Model #: 15529
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TP2501 |
| Coating | Al2O3 |
| Chip Breaker | M3 |
| Insert Length (Decimal Inch) | 0.2030 |
| Hole Diameter (mm) | 5.15 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| ISO Number | SNMG431 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Shape | Square |
