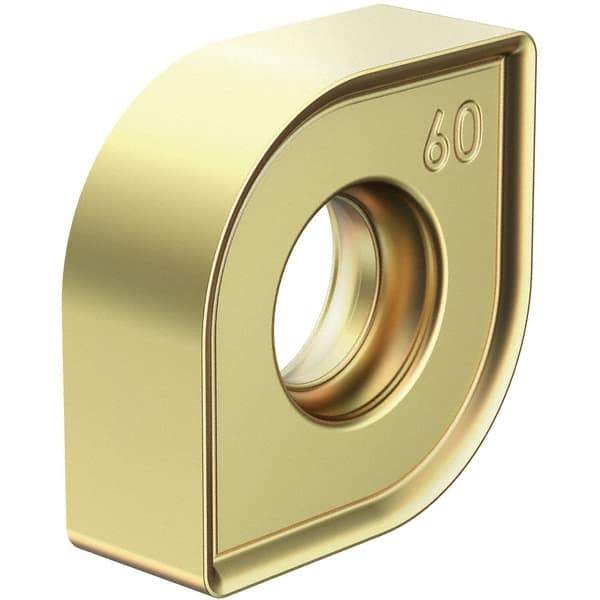

Kennametal - SNHJ338 GDH Grade KCSM40 Carbide Milling Insert - TiN Finish, 4.52mm Thick, 10mm Inscribed Circle, 1/8" Corner Radius
Item #: 43007459
Brand: Kennametal
Model #: 6441065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHJ |
| Insert Size | 338 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | TiN |
| Width (mm) | 10.00 |
| Length (mm) | 10.00 |
| Inscribed Circle (mm) | 10.00 |
| Thickness (mm) | 4.52 |
| Corner Radius (Inch) | 0.125 |
| Hole Diameter (mm) | 4.70 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GDH |
| Manufacturers Catalog Number | SNHJ338SNGDH |
| Cutter Series Compatibility | HU8X |
