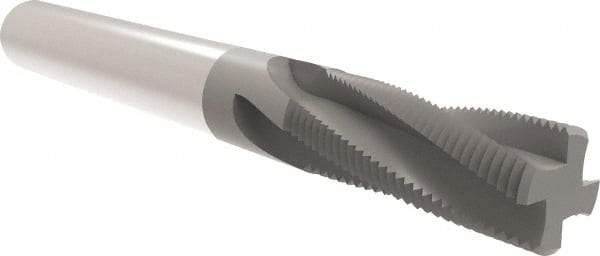

Allied Machine and Engineering - M10x1.50 Metric, 0.2913" Cutting Diam, 4 Flute, Solid Carbide Helical Flute Thread Mill - Internal/External Thread, 19.5mm LOC, 64mm OAL, 8mm Shank Diam
Item #: 42918383
Brand: Allied Machine and Engineering
Model #: TMMK1000-150M
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AM210 is a premium coating designed to improve tool life and cut at high speeds
| Product Specifications | |
|---|---|
| Pitch (mm) | 1.50 |
| Material | Solid Carbide |
| Thread Size (mm) | M10x1.50 |
| Thread Type | Internal/External |
| Shank Diameter (mm) | 8 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.2913 |
| Cutting Diameter (mm) | 7.40 |
| Length of Cut (Decimal Inch) | 0.7677 |
| Length of Cut (mm) | 19.50 |
| Finish/Coating | AM210 |
| Through Coolant | NonThrough Coolant |
| Minimum Nominal Diameter | 10mm |
| Minimum Nominal Diameter (mm) | 10.00 |
| Minimum Nominal Diameter (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 2.5197 |
| Overall Length (mm) | 64 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
