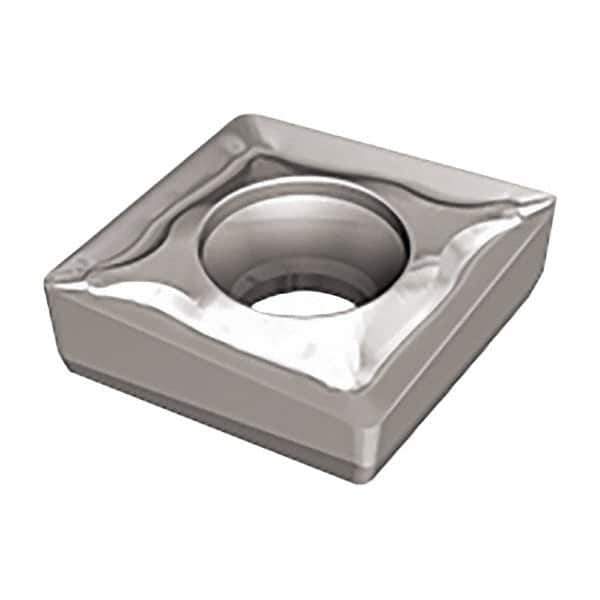

Allied Machine and Engineering - XCET040102 27Q Grade H210T Carbide Indexable Drill Insert - Uncoated, 0.177" Inscribed Circle
Item #: 42913772
Brand: Allied Machine and Engineering
Model #: 11215226
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | XCET |
| Insert Size | 040102 |
| Material | Carbide |
| Manufacturer's Grade | H210T |
| Inscribed Circle (Decimal Inch) | 0.1770 |
| Thickness (Decimal Inch) | 0.0710 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Length (Decimal Inch) | 0.1570 |
| Hole Diameter (Decimal Inch) | 0.0830 |
| Relief Angle | 7 |
| Included Angle | 88 |
| Coating | Uncoated |
| Cutting Direction | Left Hand |
| Chipbreaker | 27Q |
