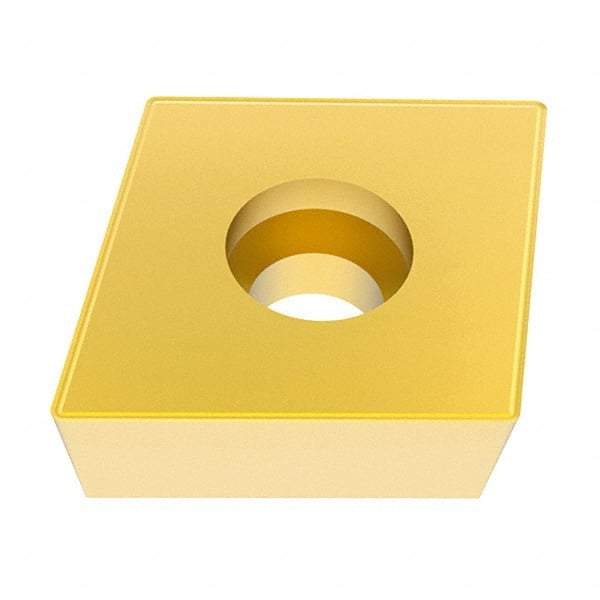

Allied Machine and Engineering - CCGT060202 Carbide Indexable Drill Insert - Uncoated, Diamond, 1/4" Inscribed Circle
Item #: 42913749
Brand: Allied Machine and Engineering
Model #: CCGT-060202
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 060202 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.39 |
| Thickness (Decimal Inch) | 0.0941 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Shape | Diamond |
| Length (mm) | 6.32 |
| Length (Decimal Inch) | 0.2488 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | Uncoated |
