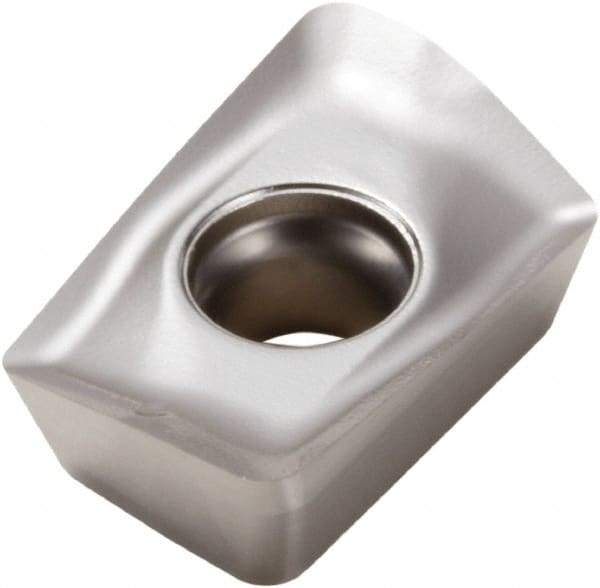

Seco - XOMX120420 E08 Grade MS2050 Carbide Milling Insert - TiAlN/NbN Finish, 0.16" Thick, 0.079" Corner Radius
Item #: 42839407
Brand: Seco
Model #: 90193
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 120420 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | MS2050 |
| Coating | TiAlN/NbN |
| Width (Decimal Inch) | 0.3220 |
| Length (Decimal Inch) | 0.4530 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (Decimal Inch) | 0.1600 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Relief Angle | 15.000 |
| Rake Angle | 25 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | E08 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| ISO Number | XOMX120420TR-ME08 |
