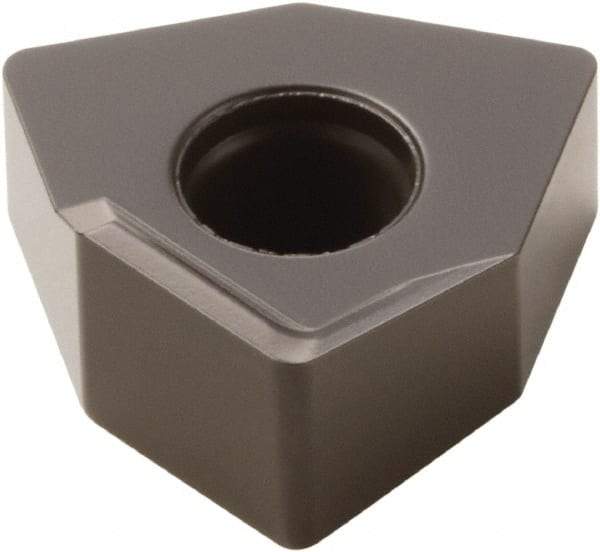

Seco - XNEX080608 11 Grade MK1500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.254" Thick, 0.491" Inscribed Circle, 0.031" Corner Radius
Item #: 42838961
Brand: Seco
Model #: 70597
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080608 |
| Material | Carbide |
| Material Grade | Ultrafine Grain |
| Manufacturer's Grade | MK1500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.4910 |
| Length (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2540 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0.000 |
| Rake Angle | 19 |
| Coating Process | CVD |
| Included Angle | 88 |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | 11 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| ISO Number | XNEX080608ZZR-M11 |
