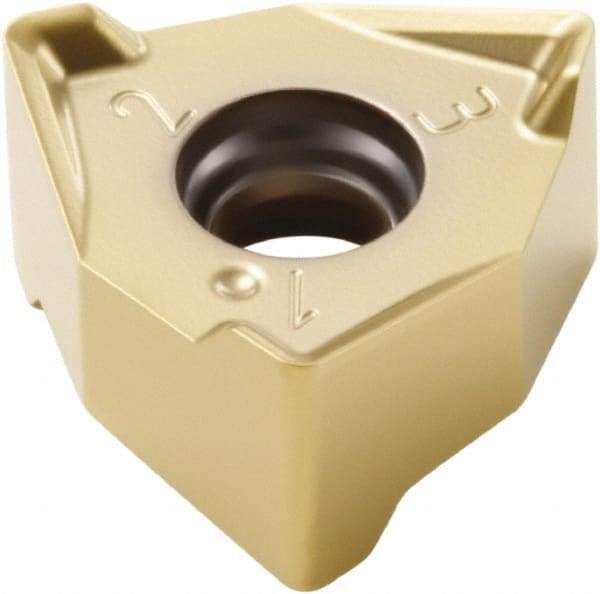

Seco - XNEX080604 M13 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.254" Thick, 0.491" Inscribed Circle, 0.016" Corner Radius
Item #: 42838946
Brand: Seco
Model #: 79289
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080604 |
| Material | Carbide |
| Material Grade | Ultrafine Grain |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.4910 |
| Length (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2540 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 0.000 |
| Rake Angle | 13 |
| Coating Process | PVD |
| Included Angle | 88 |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | M13 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| ISO Number | XNEX 080604TR-M13 |
