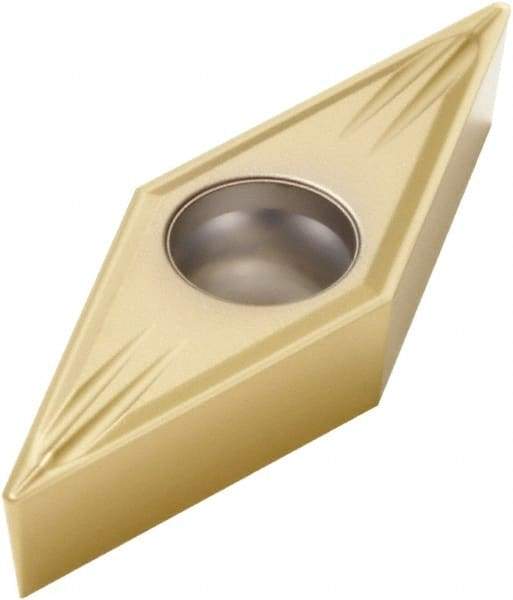

Seco - VBMT21.50 F2 Grade CP600 Carbide Turning Insert - TiAlN/TiN Finish, 35° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 42837559
Brand: Seco
Model #: 92056
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 21.50 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | CP600 |
| Coating | TiAlN/TiN |
| Chip Breaker | F2 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 5 |
| Coating Process | PVD |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
