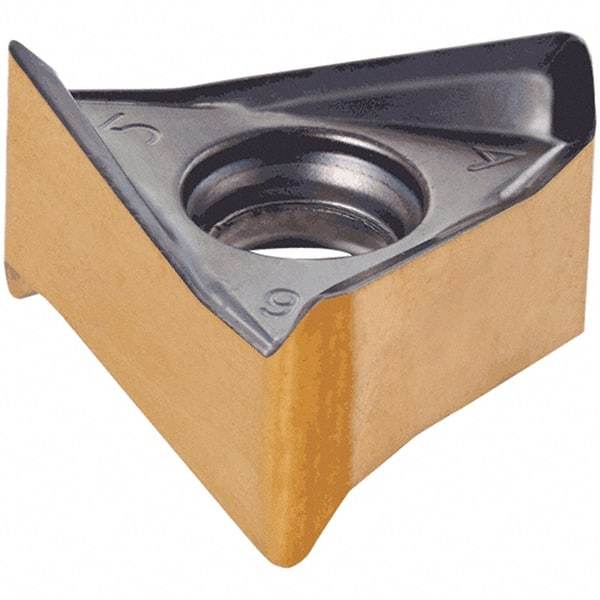

Iscar - H690 TNKX160610 PNTR Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.394" Thick, 0.472" Inscribed Circle, 0.039" Corner Radius
Item #: 42764142
Brand: Iscar
Model #: 5607502
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 TNKX |
| Insert Size | 160610 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Length (Decimal Inch) | 0.6890 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (Decimal Inch) | 0.3940 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Manufacturers Catalog Number | H690 TNKX 160610PNTR |
