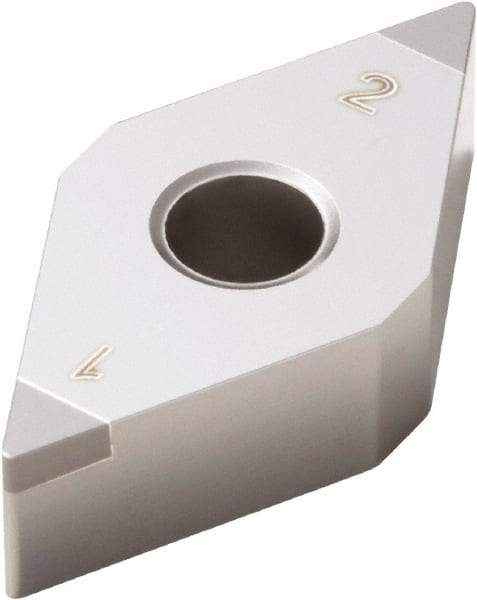

Seco - DNGA443 B Grade CBN010 CBN Turning Insert - 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 42716936
Brand: Seco
Model #: 78913
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DNGA |
| Insert Size | 443 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | CBN010 |
| Chip Breaker | B |
| Relief Angle | 0 |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
