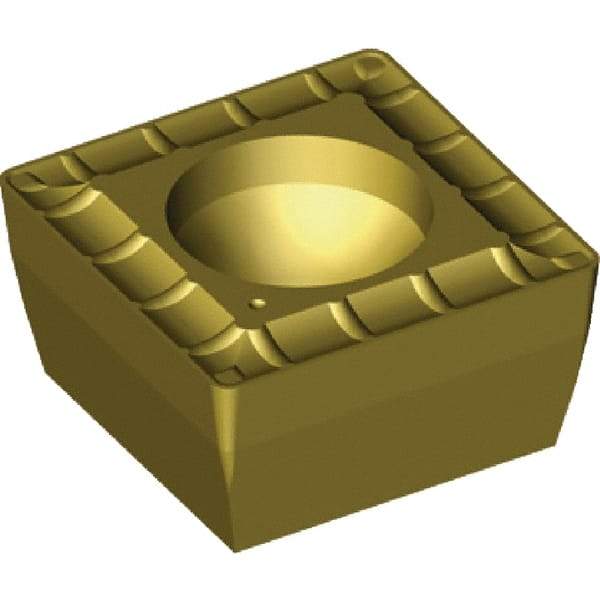

Kennametal - SPGX070304 31 Grade KCU25 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Square, 5/16" Inscribed Circle
Item #: 42706770
Brand: Kennametal
Model #: 5533665
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 070304 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | KCU25 |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3126 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1122 |
| Included Angle | 80 |
| Coating | TiCN/Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 31 |
