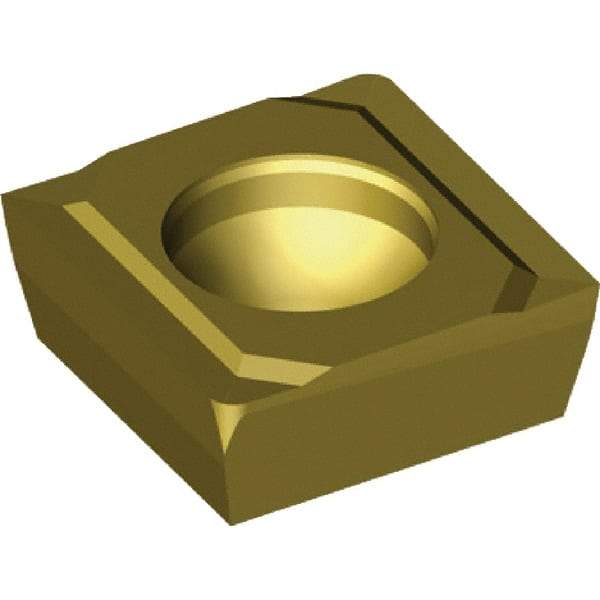

Kennametal - SPHX060204 R21 Grade KCU40 Carbide Indexable Drill Insert - TiN/TiAlN Finish, Square, 1/4" Inscribed Circle
Item #: 42706622
Brand: Kennametal
Model #: 5533649
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiAlN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SPHX |
| Insert Size | 060204 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1122 |
| Relief Angle | 7 |
| Coating | TiN/TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | R21 |
