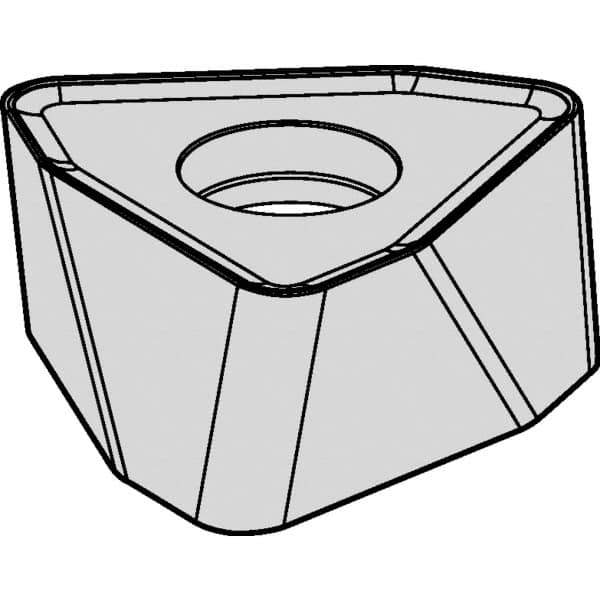

Kennametal - WOEJ090512 GD Grade KCSM30 Carbide Milling Insert - TiAlN Finish, 0.2126" Thick, 0.3504" Inscribed Circle, 0.048" Corner Radius
Item #: 42705764
Brand: Kennametal
Model #: 5517767
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOEJ |
| Insert Size | 090512 |
| Material | Carbide |
| Manufacturer's Grade | KCSM30 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.3504 |
| Thickness (Decimal Inch) | 0.2126 |
| Corner Radius (Decimal Inch) | 0.0480 |
| Relief Angle | 7.000 |
| Included Angle | 80 |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| Cutting Edge Style | Honed T-Land |
| ISO Number | WOEJ090512SRGD |
