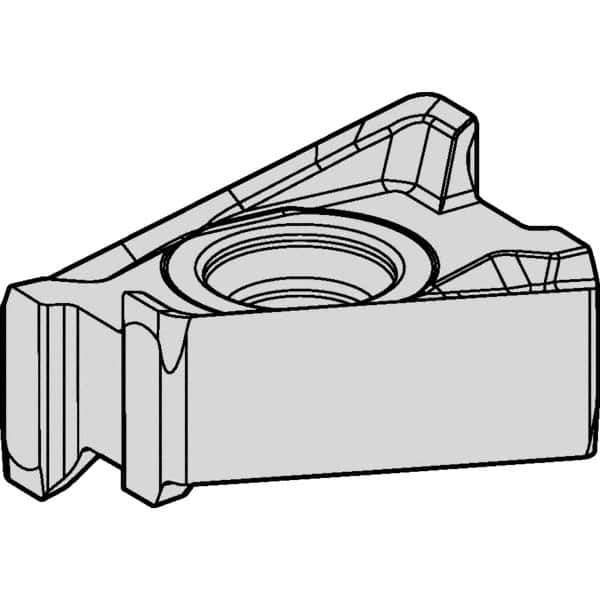

Kennametal - LNGU541 GE Grade KCPM20 Carbide Milling Insert - TiN/MT/TiCN/Al2O3 Finish, 0.1874" Thick, 0.4mm Corner Radius
Item #: 42705608
Brand: Kennametal
Model #: 5516078
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGU |
| Insert Size | 541 |
| Material | Carbide |
| Manufacturer's Grade | KCPM20 |
| Coating | TiN/MT/TiCN/Al2O3 |
| Width (Decimal Inch) | 0.3937 |
| Length (Decimal Inch) | 0.6697 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| Manufacturers Catalog Number | LNGU541SRGE |
