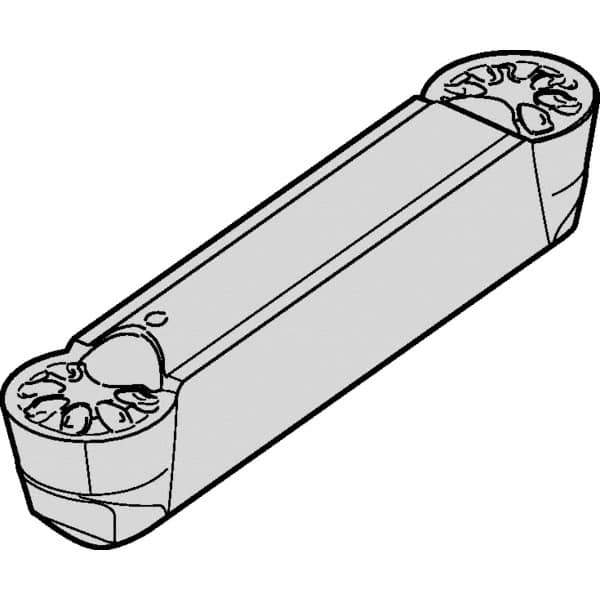

Kennametal - 0505A4R-U GUP Grade KCU10, 5.05mm Cutting Width Carbide Grooving Insert - Neutral, 2.5mm Corner Radius
Item #: 42694521
Brand: Kennametal
Model #: 5327663
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4R-U |
| Insert Size | 0505 |
| Material | Carbide |
| Cutting Width (mm) | 5.05 |
| Cutting Width (Decimal Inch) | 0.1988 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Insert Hand | Neutral |
| Insert Seat Size | 5 |
| Chipbreaker | GUP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 2.50 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Coating Process | PVD |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Series | A4 |
