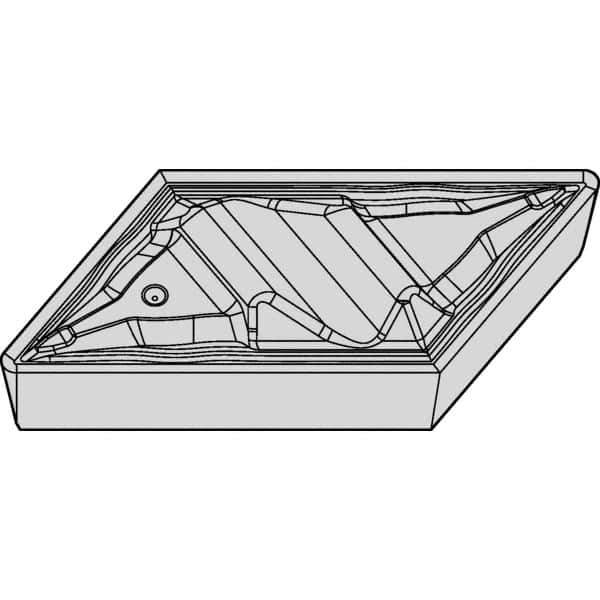

Kennametal - NPGR52 FP Grade KCP10 Carbide Turning Insert - TiCN/Al2O3 Finish, Parallelogram, 1/8" Thick, 1/32" Corner Radius
Item #: 42694091
Brand: Kennametal
Model #: 5324786
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NPGR |
| Insert Size | 52 |
| Material | Carbide |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Material Grade | C3/C7 |
| Chip Breaker | FP |
| Insert Length (Decimal Inch) | 0.4580 |
| ISO Number | KCGR110308L08FP |
| Rake | Positive |
| Relief Angle | 8 |
| Coating Process | CVD |
| Primary Workpiece Material | K; P |
| Secondary Workpiece Material | None |
| Insert Hand | Left Hand |
| Series | Top Notch |
| Maximum Depth of Cut (mm) | 1.52 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Insert Holding Method | Clamp |
| Shape | Parallelogram |
