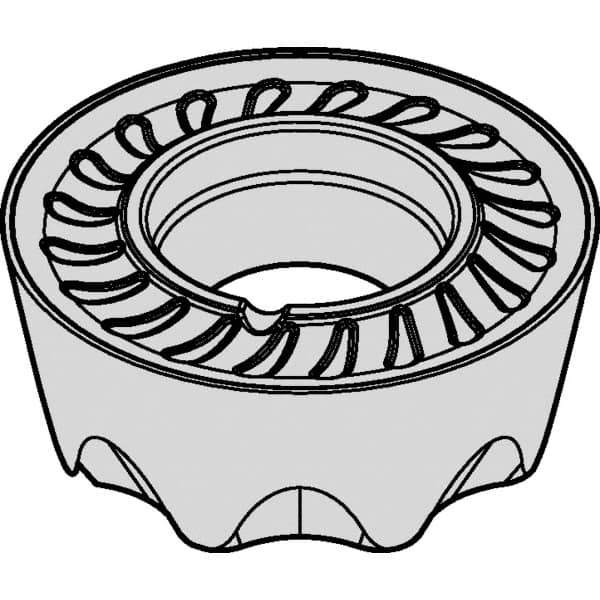

Kennametal - RPPT1204M0 GD Grade KCMP30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.1874" Thick, 12mm Inscribed Circle
Item #: 42692434
Brand: Kennametal
Model #: 5172863
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPPT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Manufacturer's Grade | KCMP30 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Decimal Inch) | 0.1874 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | GD |
| Cutting Edge Style | Honed T-Land |
| ISO Number | RPPT1204M0SGDX |
