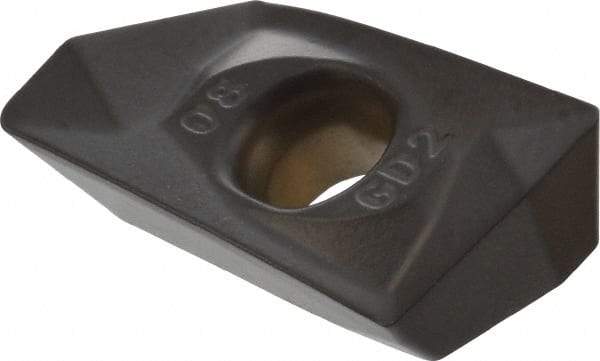

Kennametal - EP1408 GD2 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.1772" Thick, 0.8mm Corner Radius
Item #: 42689588
Brand: Kennametal
Model #: 4155725
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1408 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Width (Decimal Inch) | 0.3295 |
| Length (Decimal Inch) | 0.6878 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Included Angle | 75 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GD2 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Cutting Edge Style | Honed T-Land |
| ISO Number | EDPT140408PDSRGD2 |
