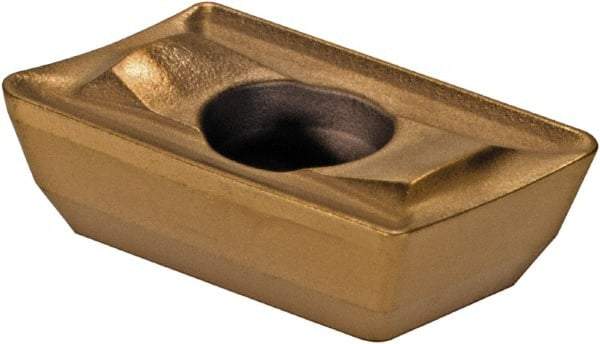

Kennametal - JOMT100308 LF Grade KC720M Carbide Milling Insert - TiAlN Finish, 0.1252" Thick, 0.8mm Corner Radius
Item #: 42685784
Brand: Kennametal
Model #: 3583696
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | JOMT |
| Insert Size | 100308 |
| Material | Carbide |
| Manufacturer's Grade | KC720M |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2528 |
| Length (Decimal Inch) | 0.4016 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 13.000 |
| Rake Angle | 10 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | LF |
| Cutting Edge Style | Honed |
| ISO Number | JOMT100308ERLF |
