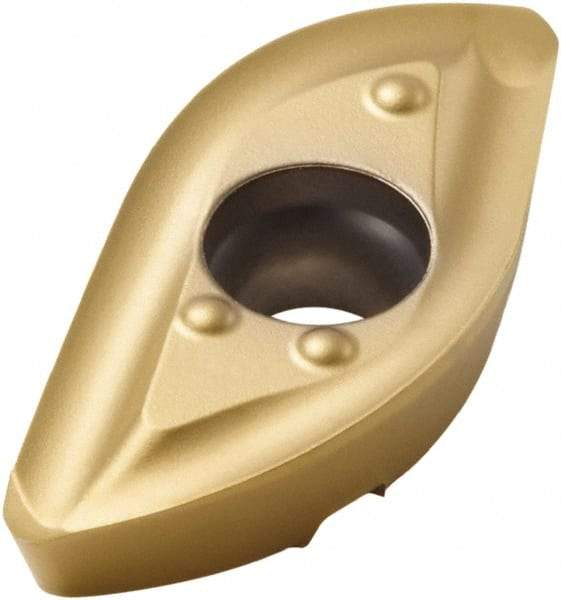

Seco - 218.20200 ME10 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.312" Thick, 0.787" Corner Radius
Item #: 42656280
Brand: Seco
Model #: 07501
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.20 |
| Insert Size | 200 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.6240 |
| Length (Decimal Inch) | 1.5060 |
| Thickness (Decimal Inch) | 0.3120 |
| Corner Radius (Decimal Inch) | 0.7870 |
| Rake Angle | 12 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Irregular |
| Chipbreaker | ME10 |
| ISO Number | 218.20-200ER-ME10 |
