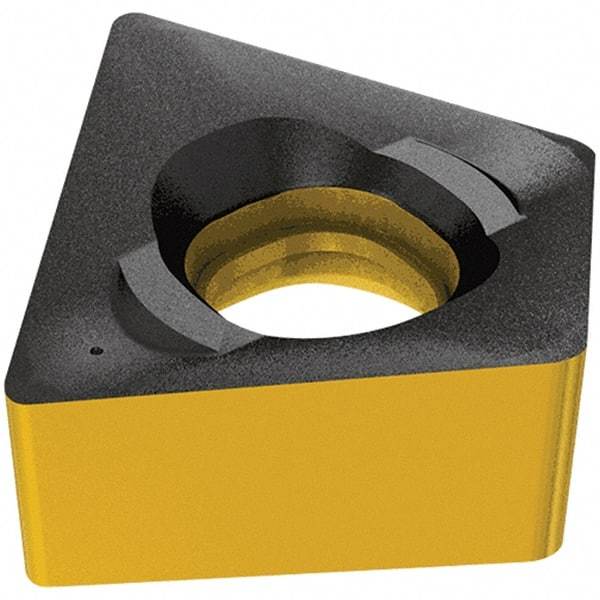

Iscar - XNMU130608 MM Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 8.5mm Thick, 1/32" Corner Radius
Item #: 42568360
Brand: Iscar
Model #: 5607637
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNMU |
| Insert Size | 130608 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 13.00 |
| Length (Decimal Inch) | 0.5120 |
| Thickness (mm) | 8.50 |
| Thickness (Decimal Inch) | 0.3350 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.3100 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | MM |
| Manufacturers Catalog Number | XNMU 130608PNN-MM |
| ISO Number | XNMU 130608PNN-MM |
| ANSI Number | XNMU 130608PNN-MM |
