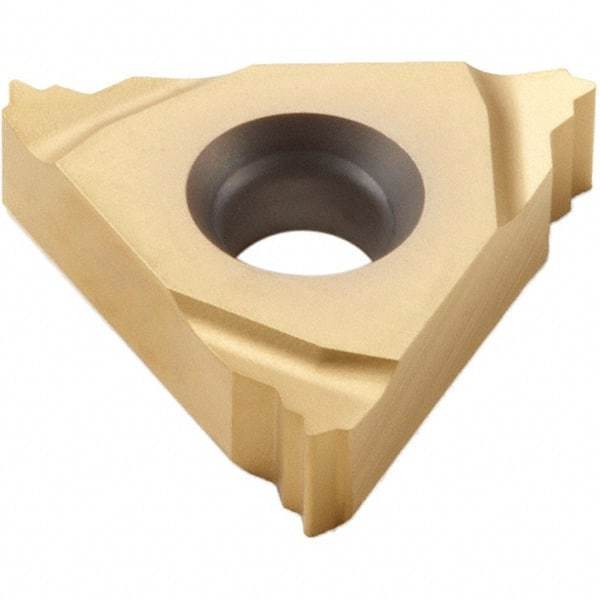

Seco - 16ER External Right Hand 12 UNJ Laydown Threading Insert - Grade CP200, Carbide, 3/8" Inscribed Circle
Item #: 42429969
Brand: Seco
Model #: 02456747
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16 ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | UNJ |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP200 |
| External Threads Per Inch | 12 |
| Threads Per Inch | 12 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1366 |
| Thickness (mm) | 3.47 |
| Included Angle of Threading Tip | 60 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.013 |
| Corner Radius (mm) | 0.34 |
| Corner Radius (Decimal Inch) | 0.0130 |
| Number of Teeth Per Side | 3 |
