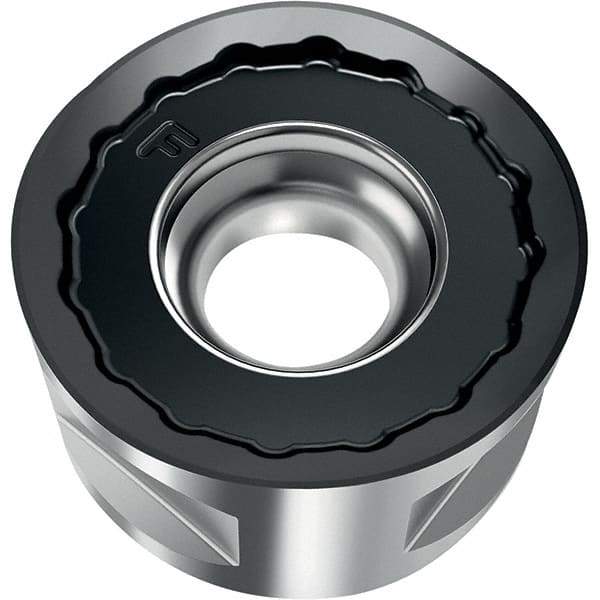

Walter - F67 Grade WSP45S Milling Insert - 6.48mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 42400234
Brand: Walter
Model #: 7037547
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Length (mm) | 0.00 |
| Length (Decimal Inch) | 0.0000 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (mm) | 6.48 |
| Thickness (Decimal Inch) | 0.2550 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | F67 |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | RNMX1206M0-F67 WSP45S |
