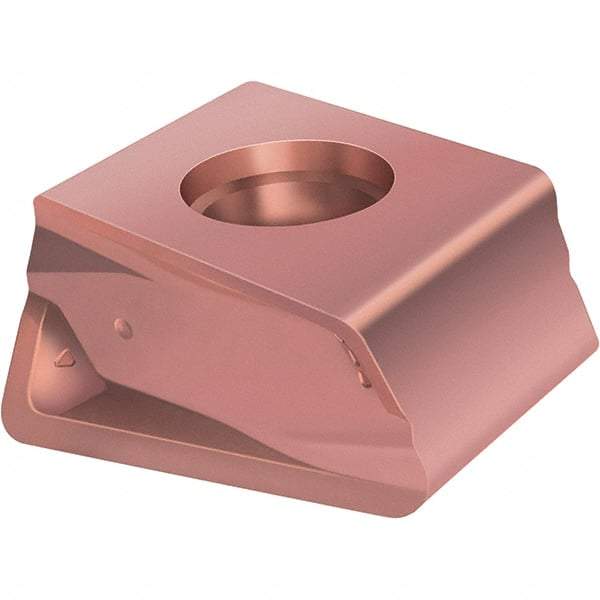

Walter - L85T Grade WK10 Milling Insert - 7.2mm Thick, 0.8mm Corner Radius
Item #: 42336560
Brand: Walter
Model #: 6348403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WK10 |
| Width (mm) | 15.50 |
| Width (Decimal Inch) | 0.6100 |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 7.20 |
| Thickness (Decimal Inch) | 0.2830 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 0.000 |
| Insert Hand | Right Hand |
| Chipbreaker | L85T |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | LNHU160708R-L85T WK10 |
