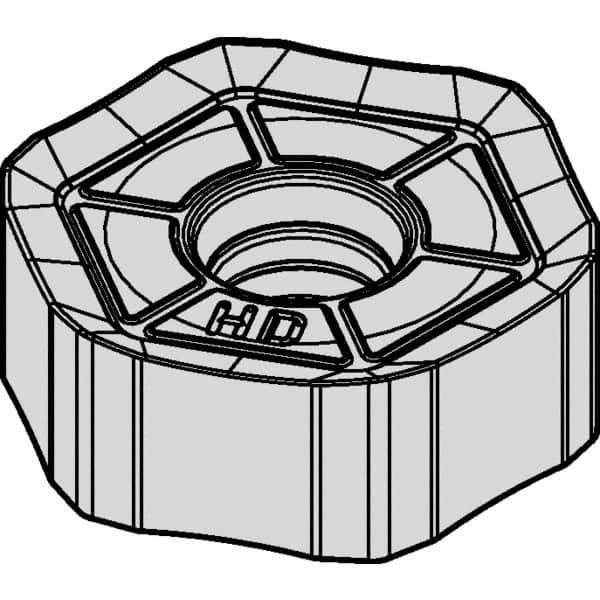

Kennametal - HNGJ535 Grade KC520M Carbide Milling Insert - TiAlN Finish, 0.2142" Thick, 5/8" Inscribed Circle, 4.34mm Corner Radius
Item #: 41947128
Brand: Kennametal
Model #: 3749128
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGJ |
| Insert Size | 535 |
| Material | Carbide |
| Material Grade | C1/C2 |
| Manufacturer's Grade | KC520M |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.3346 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness (Decimal Inch) | 0.2142 |
| Corner Radius (Decimal Inch) | 0.1710 |
| Corner Radius (mm) | 4.34 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 120 |
| Shape | Hexagon |
| ISO Number | HNGJ090543ANSNHD |
