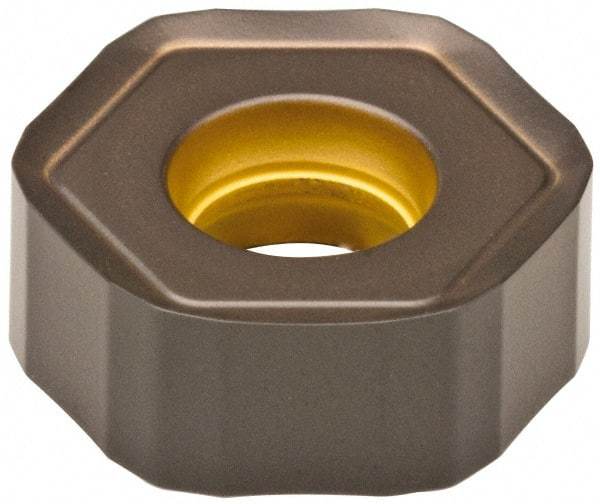

Kennametal - HNPJ43 GD Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.175" Thick, 12mm Inscribed Circle
Item #: 41044686
Brand: Kennametal
Model #: 4119699
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNPJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Width (Decimal Inch) | 0.0000 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (Decimal Inch) | 0.1750 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| ISO Number | HNPJ0604ANSNGD |
