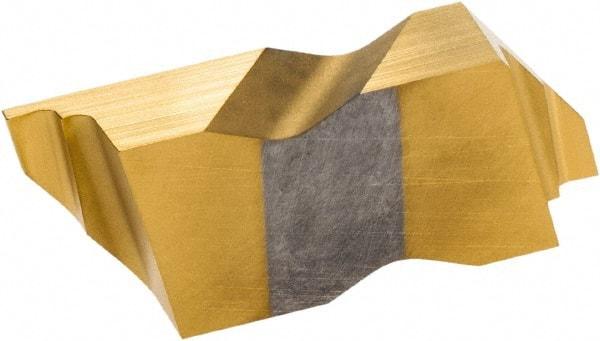

Tool-Flo - 3031FLG Grade GP50, 0.79mm Cutting Width Carbide Grooving Insert - 1.27mm Max Depth of Cut, Left Hand, 0.002 to 0.005" Corner Radius, TiN Finish
Item #: 40985236
Brand: Tool-Flo
Model #: 563631LN4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLG |
| Insert Size | 3031 |
| Material | Carbide |
| Cutting Width (mm) | 0.79 |
| Cutting Width (Decimal Inch) | 0.0310 |
| Maximum Depth of Cut (mm) | 1.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | GP50 |
| Coating | TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0020 |
| Maximum Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (Decimal Inch) | 0.002-0.005 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLG-3031L |
| Insert Thickness (Decimal Inch) | 0.1950 |
