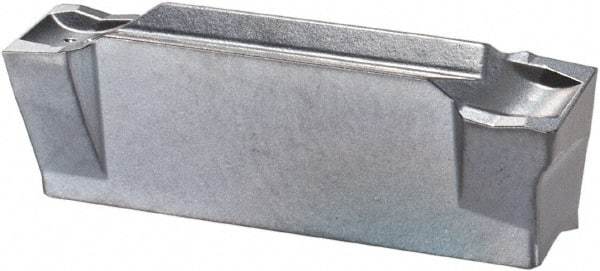

Iscar - DGR C IC328 Grade, 0.189" Cutting Width, Carbide Cutoff Insert - 8° Right Hand Lead Angle, 0.0118" Cnr Rad, TiCN Coated, Double End
Item #: 40913584
Brand: Iscar
Model #: 6003234
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGR |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Series | Do-Grip |
| Chipbreaker | C |
| Coating Process | PVD |
| Overall Length (mm) | 20.30 |
| Overall Length (Decimal Inch) | 0.7992 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | DGR 4803C-8D |
