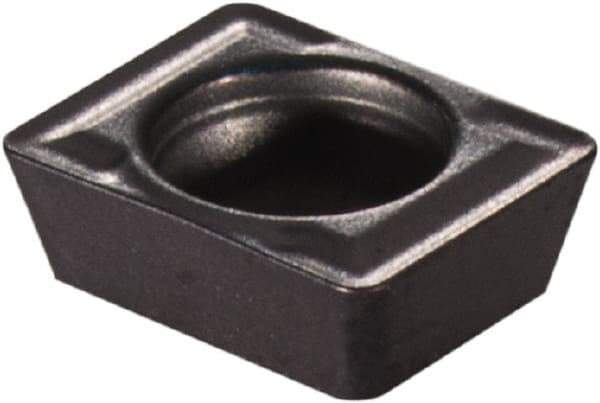

Iscar - AOMT040204 DT Grade IC908 Carbide Indexable Drill Insert - TiAlN Finish, Parallelogram
Item #: 40868341
Brand: Iscar
Model #: 5507955
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | AOMT |
| Insert Size | 040204 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Thickness (mm) | 1.60 |
| Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Parallelogram |
| Width (Decimal Inch) | 0.1575 |
| Width (mm) | 4.00 |
| Length (mm) | 5.00 |
| Relief Angle | 31 |
| Included Angle | 85 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | DT |
