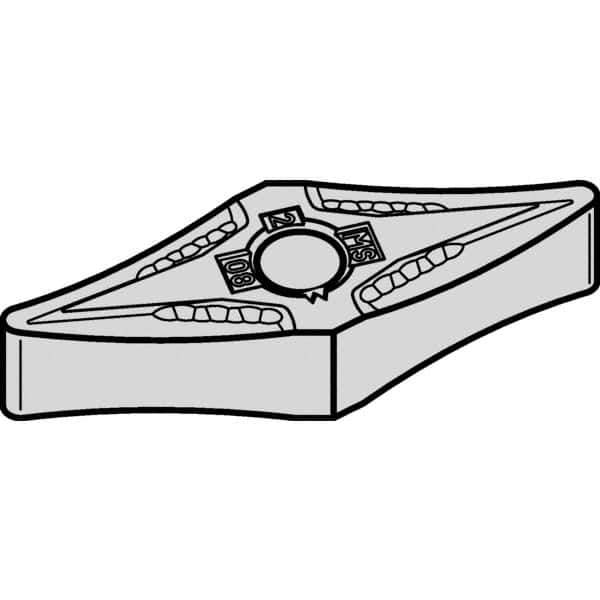

Kennametal - VNMG431 MS Grade KCU10 Carbide Turning Insert - 35° Included Angle, AlTiN Finish, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 40770976
Brand: Kennametal
Model #: 5090855
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (Decimal Inch) | 0.8717 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | MS |
| Insert Length (Decimal Inch) | 0.8717 |
| Overall Length (Decimal Inch) | 0.8717 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | VNMG220404MS |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | VNMG431MS |
| Included Angle | 35 |
| Insert Hand | Neutral |
