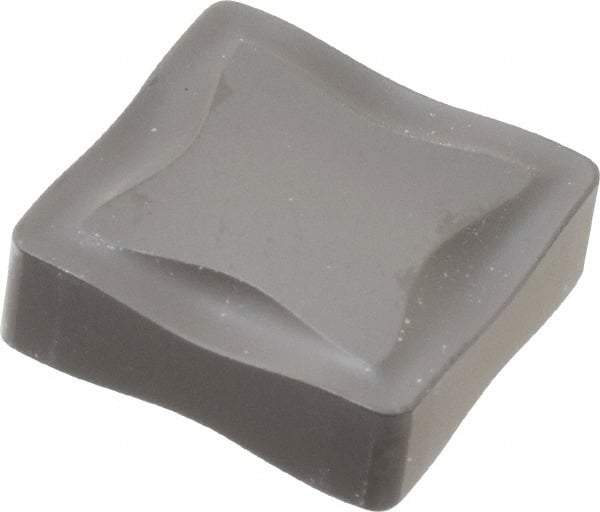

Seco - SNHF150412 M14 Grade MK3000 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.187" Thick, 5/8" Inscribed Circle
Item #: 40635435
Brand: Seco
Model #: 31839
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHF |
| Insert Size | 150412 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MK3000 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.6250 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.1870 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M14 |
| ISO Number | SNHF150412TN-M14 |
