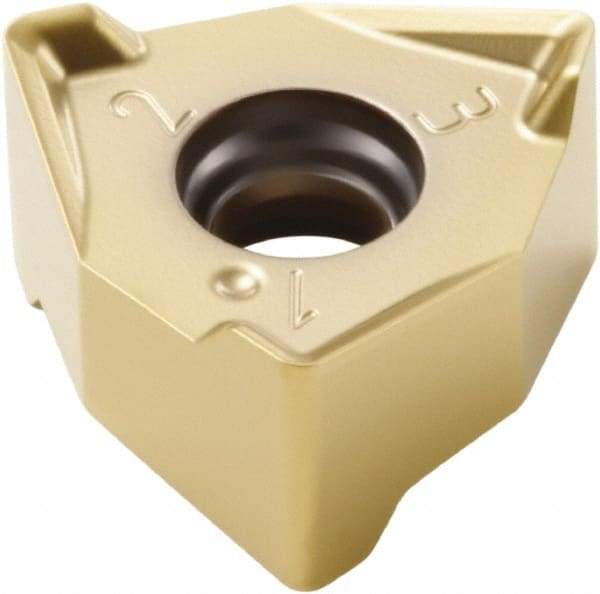

Seco - XNEX080604 M13 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.2539" Thick, 0.016" Corner Radius
Item #: 40470932
Brand: Seco
Model #: 79288
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080604 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.4913 |
| Length (Decimal Inch) | 0.4913 |
| Thickness (Decimal Inch) | 0.2539 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Shape | Trigon |
| Chipbreaker | M13 |
| ISO Number | XNEX080604TR-M13 |
