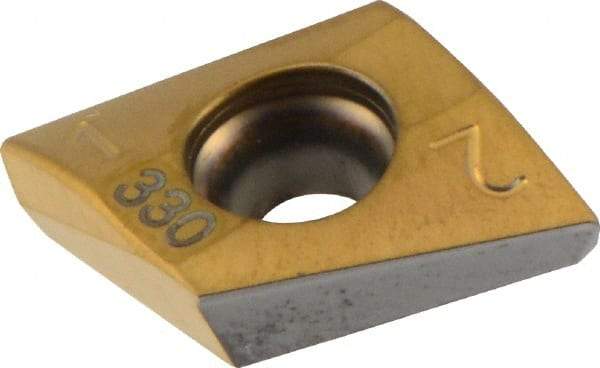

Iscar - T290 LNMT100405 Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.1614" Thick, 0.5mm Corner Radius
Item #: 40284010
Brand: Iscar
Model #: 5606039
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T290 LNMT |
| Insert Size | 100405 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.3504 |
| Length (Decimal Inch) | 0.3937 |
| Thickness (Decimal Inch) | 0.1614 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| ISO Number | T290 LNMT 100405TR |
