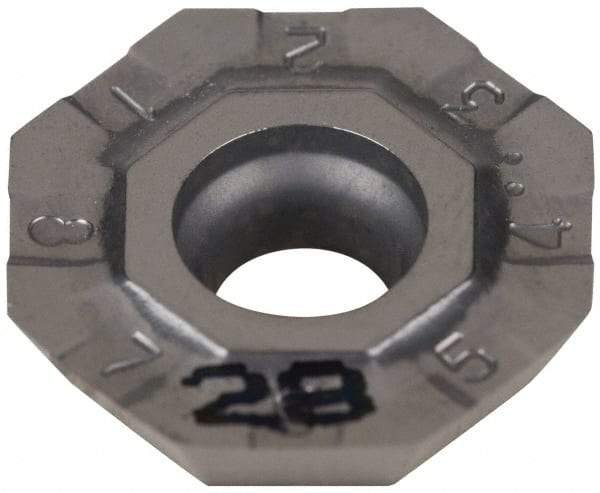

Iscar - OFCR07T3 P Grade IC28 Carbide Milling Insert - Uncoated, 0.1791" Thick, 0.7008" Inscribed Circle, 0.6mm Corner Radius
Item #: 40206013
Brand: Iscar
Model #: 5602068
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFCR |
| Insert Size | 07T3 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.7008 |
| Inscribed Circle (Decimal Inch) | 0.7008 |
| Thickness (Decimal Inch) | 0.1791 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Relief Angle | 25.000 |
| Rake | Positive |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | P |
| ISO Number | OFCR 07T3-AEN-P |
