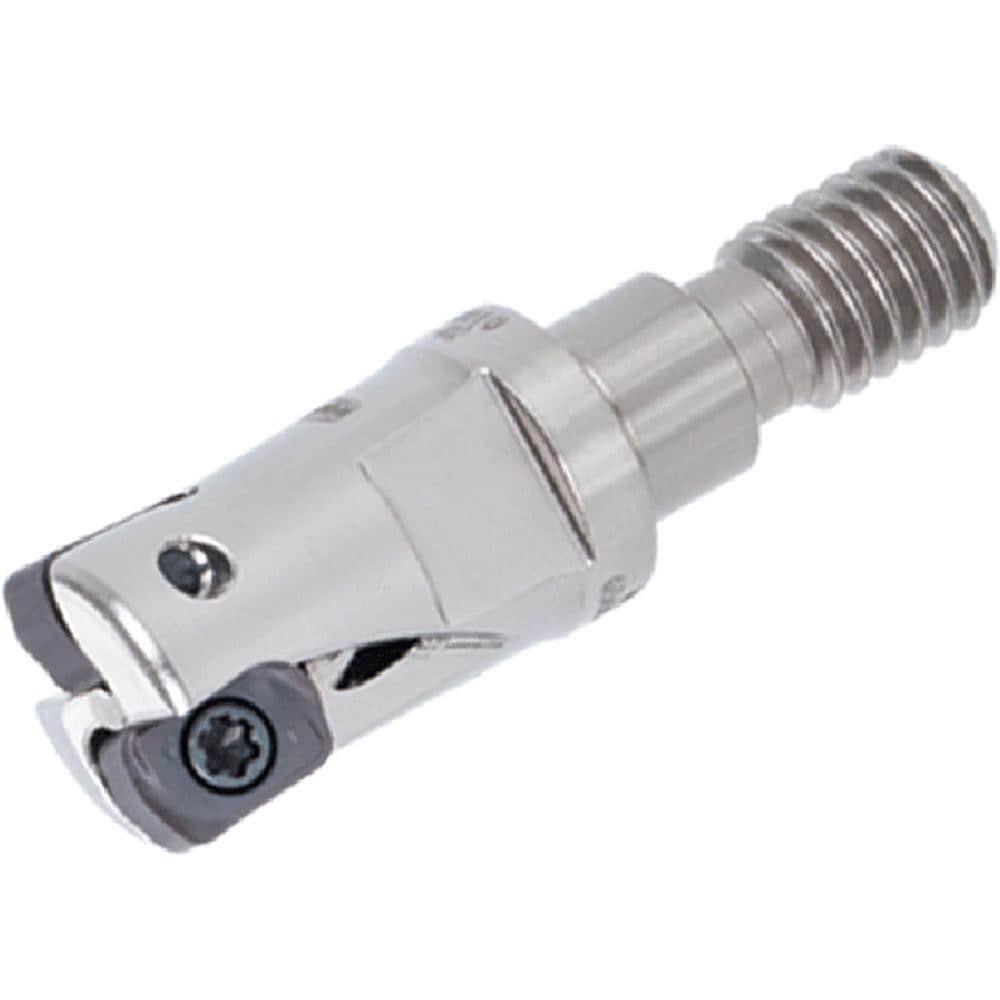

Indexable High-Feed End Mill: 12 mm Cut Dia, 6 mm Modular Shank
Item #: 82957473
Brand: Tungaloy
Model #: 6837337
Product Specifications
| Minimum Cutting Diameter (mm) | 7.80 |
| Maximum Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 0.50 |
| Toolholder Style | HXN02-M |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 6.00 |
| Maximum Ramping Angle | 1.90 |
| Compatible Insert Style | LNMU |
| Compatible Insert Size Code | 02 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 31.5000 |
| Overall Length (Inch) | 31-1/2 |
| Overall Length (mm) | 31.50 |
| Series | HXN-02 |
| Flute Type | Straight |
| Modular Connection Size | M6 |
| Head Length (mm) | 17.00 |
| Functional Length (mm) | 17.00 |
| Tool Application | Facing; Milling |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
