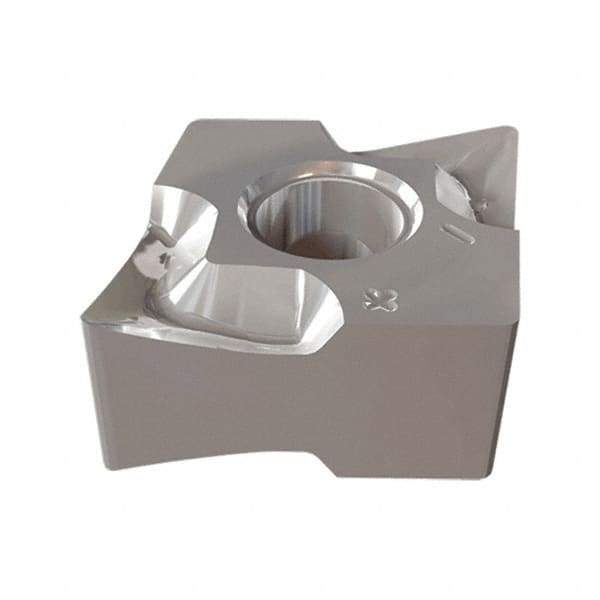

Iscar - T490 LNHT1306 R Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 13.05mm Thick, 0.8mm Corner Radius
Item #: 39717954
Brand: Iscar
Model #: 3321145
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 1306 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.65 |
| Width (Decimal Inch) | 0.2620 |
| Length (mm) | 13.81 |
| Length (Decimal Inch) | 0.5440 |
| Thickness (mm) | 13.05 |
| Thickness (Decimal Inch) | 0.5140 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Tangential |
| Insert Hand | Right Hand |
| Chipbreaker | R |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNHT 1306PN-R-PL |
| ISO Number | T490 LNHT 1306PN-R-PL |
| ANSI Number | T490 LNHT 1306PN-R-PL |
