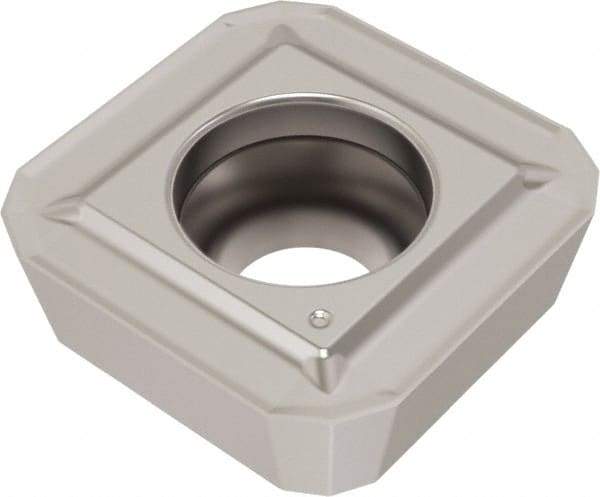

Seco - SPGX12T3 MC Grade DS4050 Carbide Indexable Drill Insert - TiAlN/NbN Finish, Square, 1/2" Inscribed Circle
Item #: 39684337
Brand: Seco
Model #: 03134324
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 12T3 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | DS4050 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.00 |
| Shape | Square |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.5000 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiAlN/NbN |
| Coating Process | PVD |
| Cutting Direction | Left Hand; Right Hand |
| Chipbreaker | MC |
