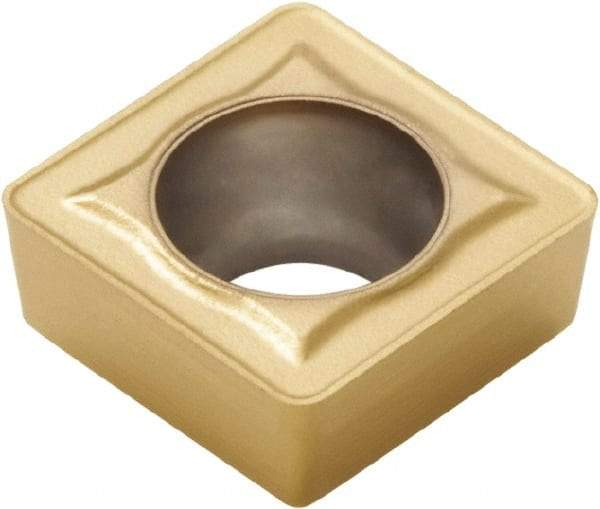

Seco - SCGX11T308 P2 Grade T250D Carbide Indexable Drill Insert - TiAlN+TiN Finish, Square, 29/64" Inscribed Circle
Item #: 39684303
Brand: Seco
Model #: 03097760
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multi-layered coating designed to increase tool life. It is extremely heat-resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 11T308 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | T250D |
| Inscribed Circle (Inch) | 0.4531 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.80 |
| Shape | Square |
| Width (Decimal Inch) | 0.4531 |
| Length (Decimal Inch) | 0.4531 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiAlN+TiN |
| Coating Process | PVD |
| Cutting Direction | Left Hand; Right Hand |
| Chipbreaker | P2 |
