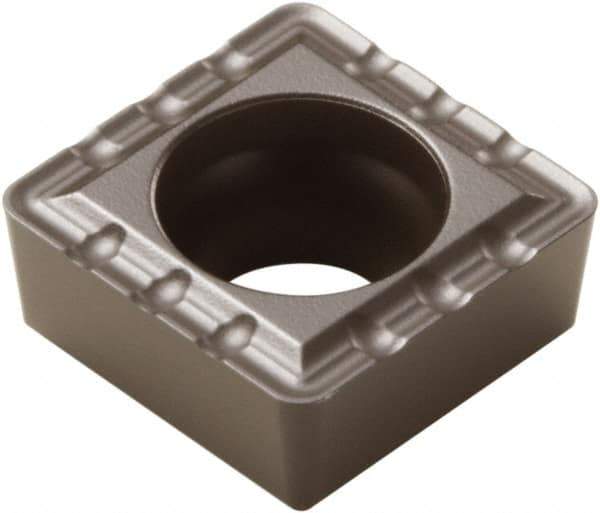

Seco - SCGX11T308 P1 Grade DP2000 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Square, 29/64" Inscribed Circle
Item #: 39684261
Brand: Seco
Model #: 03136963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 11T308 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | DP2000 |
| Inscribed Circle (Inch) | 0.4531 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.80 |
| Shape | Square |
| Width (Decimal Inch) | 0.4531 |
| Length (Decimal Inch) | 0.4531 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiCN/Al2O3 |
| Coating Process | Duratomic |
| Cutting Direction | Left Hand; Right Hand |
| Chipbreaker | P1 |
