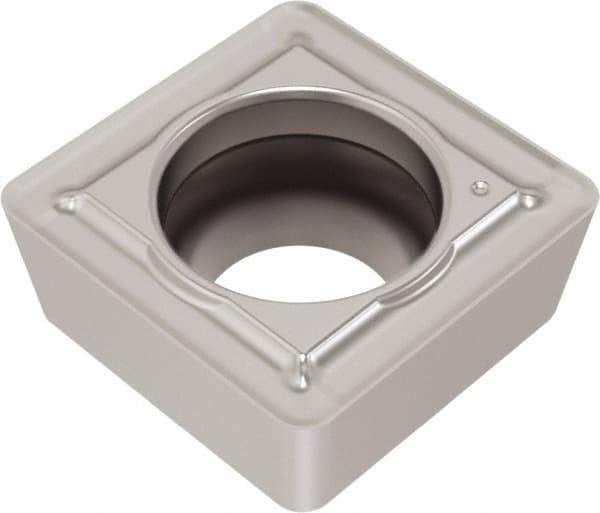

Seco - SCGX060204 MP Grade DS2050 Carbide Indexable Drill Insert - TiAlN/NbN Finish, Square, 1/4" Inscribed Circle
Item #: 39684238
Brand: Seco
Model #: 03134313
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 060204 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | DS2050 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/4 |
| Corner Radius (mm) | 0.40 |
| Shape | Square |
| Width (Decimal Inch) | 0.2500 |
| Length (Decimal Inch) | 0.2500 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiAlN/NbN |
| Coating Process | PVD |
| Cutting Direction | Left Hand; Right Hand |
| Chipbreaker | MP |
